1. Basics

Forces and Moments

A force $\vec{F}$ applied on a line can have a uniform or variable distribution $\vec{q}$. The unit for $\vec{q}$ is $N{m}^{-}1$.

Example: Linear Distribution

$$\begin{array}{rl}& \vec{q}={\vec{q}}_0\frac{z}{L}\\ & \vec{F}={\int }_0^L\vec{q}(z)dz\end{array}$$

---

Moments

Definition

An action defined by a force that causes rotation about a given axis. The unit is $Nm$

$$\vec{M}=\vec{a}\times \vec{F}$$

Where $\vec{a}$ is called the arm — it is the position vector of the force’s application point relative to the rotation’s pivot.

Static equilibrium

A body is in static equilibrium when the following holds:

$$\begin{array}{rlr}\Sigma \vec{F}=0& & \Sigma \vec{M}=0\end{array}$$

Note

In 2D, that’s 3 equations (2 for translation, 1 for rotation), while for 3D it’s 6 equations.

Static Equivalence

Definition

Two bodies are statically equivalent if they have the same resultant force and moment.

Two forces of:

• Equal amplitude $F$
• Equal direction ${\vec{u}}_F$
• Opposite versus
• Different lines of actions are statically equivalent to a moment $M=Fh$ where $h$ is the distance between the two forces. The moment is applied in the middle between the two forces.

Any set of forces on a body are equivalent to a linearly independent set of forces and moments. This is the equivalent force moment system.

---

Determinacy of Structures

In a structure of interconnected bodies with $n$ available degrees of freedom (DOF), and constraints that inhibit $v$ DOFs, the degree of static determinacy is:

$$h=v-n$$

What does $h$ mean?

• $h<0$: Not enough constraints to keep the structure static. It is therefore statically impossible or kinematically indeterminated.
• $h=0$: The structure has no free DOFs, and is therefore statically determinated.
• $h>0$: There are more constraints than needed to block motion. It is therefore statically indeterminated. However, we need $h$ extra equations to solve the system due to forces caused by deformations. (Virtual works principle)

WARNING

$h=0$ does NOT guarantee that the structure is statically determinated. For the example on the bottom right, the movement might be very small, but we consider infinitesimal movement to cause kinematic indeterminacy.

---

Solving Structures (2D)

Definition

Solving a structure means calculating the unknown reaction forces (and moments) exerted by supports to maintain the body in equilibrium.

Flowgraph

graph TD
    Start([Start Problem]) --> Step1["(1) Compute degree of <br/>static determinacy h"]
    Step1 --> CheckH{"Check h"}

    CheckH -- "h > 0" --> Stop1["STOP: Hyperstatic System"]
    CheckH -- "h < 0" --> Labile{"Do actions excite <br/> rigid motion?"}
    Labile -- Yes --> Stop2["STOP: Mechanism"]
    CheckH -- "h = 0" --> Iso{"Is rigid <br/> motion allowed?"}
    Iso -- Yes --> Stop3["STOP: Bad Constraints"]

    Labile -- No --> Step2
    Iso -- No --> Step2

    subgraph Execution ["The Solution Workflow"]
        direction TB
        Step2["(2) Compute External & <br/>Internal Reactions"] --> Step3["(3) Define Coordinate System <br/> (along the beam)"]
        Step3 --> Step4["(4) Define Segments <br/> (Identify discontinuities)"]
        Step4 --> Step5["(5) Section Each Segment <br/> (Expose Internal Actions N, T, M)"]
        Step5 --> Step6["(6) Compute Internal Functions <br/> (Equilibrium of the cut piece)"]
        Step6 --> Step7(["(7) Plot the Diagrams"])
    end

1. Check Static Determinacy ($h$)

• $h>0$ (Hyperstatic): STOP. Equilibrium equations are insufficient.
• $h<0$ (Labile): STOP. Mechanism forms (unless loads avoid exciting motion).
• $h=0$ (Isostatic): Proceed, provided no rigid motion is allowed.

2. Free Body Diagram (FBD)

• Remove supports and replace them with unknown reaction vectors ($H_A,V_A,M_A$).

3. Equilibrium Equations (Options)

Select one set to solve for unknowns. Tip: Aim for uncoupled equations (1 unknown per equation).

• Option 1 (Standard): 2 Forces ($\sum F_x,\sum F_y$) + 1 Moment ($\sum M_P$).
• Option 2: 2 Moments ($\sum M_P,\sum M_Q$) + 1 Force (not $\perp$ to $PQ$).
• Option 3: 3 Moments ($\sum M_P,\sum M_Q,\sum M_R$) (points not aligned).

---

4. Assemblies (Multiple Interconnected Bodies)

When a structure consists of multiple rigid bodies connected by internal constraints (e.g., hinges), you must account for internal reactions.

A. Rule for Internal Reactions

Newton's Third Law

Internal reactions on Body #1 must be EQUAL and OPPOSITE to the internal reactions on Body #2.

• If $H_B$ points left on Body #1, it MUST point right on Body #2.
• When the whole structure is re-assembled, these internal forces vanish.

B. Views for Analysis

1. Whole Structure View: Shows only external supports. Internal hinges are hidden. Useful if total external unknowns $\le 3$.
2. Exploded View (Single Bodies): Shows internal reactions at connections. Total equations available = $3\times (\text{Number of Bodies})$.

C. Solving Strategies

You need as many equations as there are unknowns (External + Internal).

• Option A (Hybrid):

  • Write 3 equations for the Whole Structure (ignores internal forces).
  • Write 3 equations for One Body (reveals internal forces).
  • Use when: The entire structure allows you to find some external reactions immediately.

• Option B (Exploded):

  • Write 3 equations for Body #1.
  • Write 3 equations for Body #2.
  • (3 additional equations for every body added)
  • Strategy: Look for the “weak link” body (the one with only 3 unknowns) and solve that one first. Then transfer the values to the connected body.

---

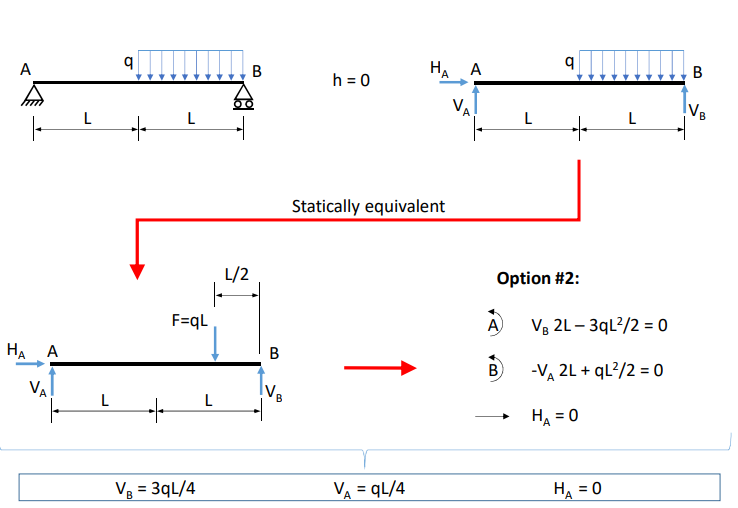

Examples

---

Bodies

Beams

A Beam is a “slender” body where the Axial Length is significantly larger than the Transverse Dimensions (cross-section).

• Criterion: Length $\approx$ 10 to 30+ times the width.
• Axis: The line running along the axial direction.

Definition

The axis of a body with a straight axis is the locus of the centroid of cross-sections.
